Energy Saving Rotary Type 2500pcs/h Paper Egg Tray Machine Egg Tray Production Line Customized Molds Aluminum
Egg tray making machine refers to the machine that can be used to make paper egg trays. Paper egg trays, as a kind of protective shell to hold eggs, are becoming the mainstream packaging product on the market.Jinan Wanyou Packing Machinery Factory egg tray machine enables customers to make egg trays with higher quality and higher bearing capacity. Due to low cost and high return, more and more people are willing to invest in the machine. Especially for chicken farmers, they can sell the eggs packaged by egg trays at a higher price. If you are interested in the profitable business, contact us now!
Brief introduction of Pulping system:
Pulping system:including the hydraulic pulper, pulp pump, water pump, pulp pump, mixer with knife,etc..to make the wastepaper into paper pulp.
Brief introduction of Forming System:
Forming system: including the molding machine,molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
Technical Parameters of 4*4 molds egg tray machine without dryer:
| Egg Tray mould quantity | 16pcs (4*4) |
| Raw material | Waste paper |
| Output for egg tray | 2500-3000pcs/h |
| Net weight per piece | 70g-75g |
| Waste paper consumption | 225kg/h |
| Water consumption | 0.68t/h |
| Workshop dimension | Around 20M*W10M*H5M |
| Power supply | 380V/50HZ |
| Installed Power | 84kw around |
| Motor efficiency | 70% of installed power 84kw |
| Machine Weight | 9 tons around |
| Egg tray Size | 295mm*295mm 30eggs |

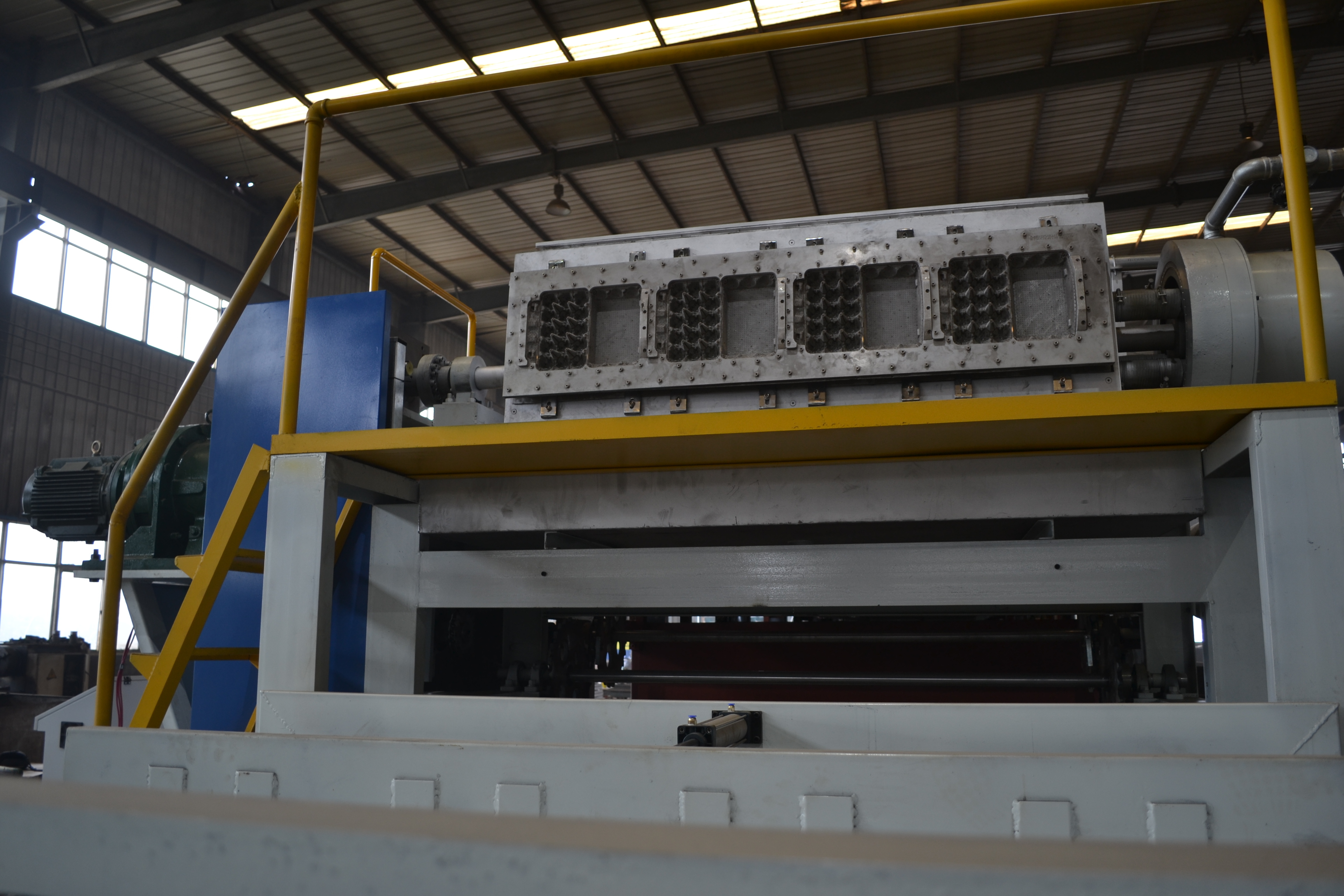

4*4 molds rotary egg tray production line paper egg tray machine without dryer 2500-3000pcs/h capacity

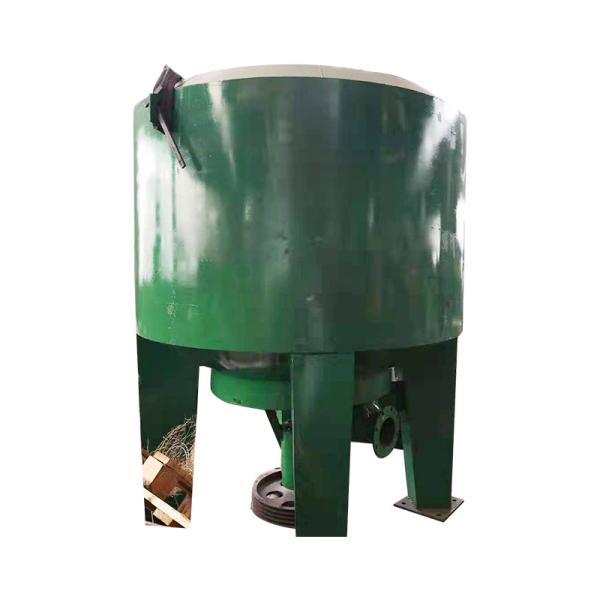

Pulping system machine of paper egg tray machine egg tray production line
Some world famous brands of the fittings:
1. the cylinder’s brand—FESTO
2. the electromagnetic valve’s brand—SHAKO
3. the pneumatic ball valve’s brand—SUPU
4. all the pump and motor are using famous brand of China.
5. the electric appliance’s brand—CHINT
6. the computer controller(PLC)--DELTA
7. the burner-- BALTUR/RIELLO
Why Choose Us
Advantages of our machine:
1. Controlled by automatic computer soft ware
2. Easy to be installed, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds
5. Besides egg tray, fruit trays, our machine also can produce industrial packaging trays.
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine

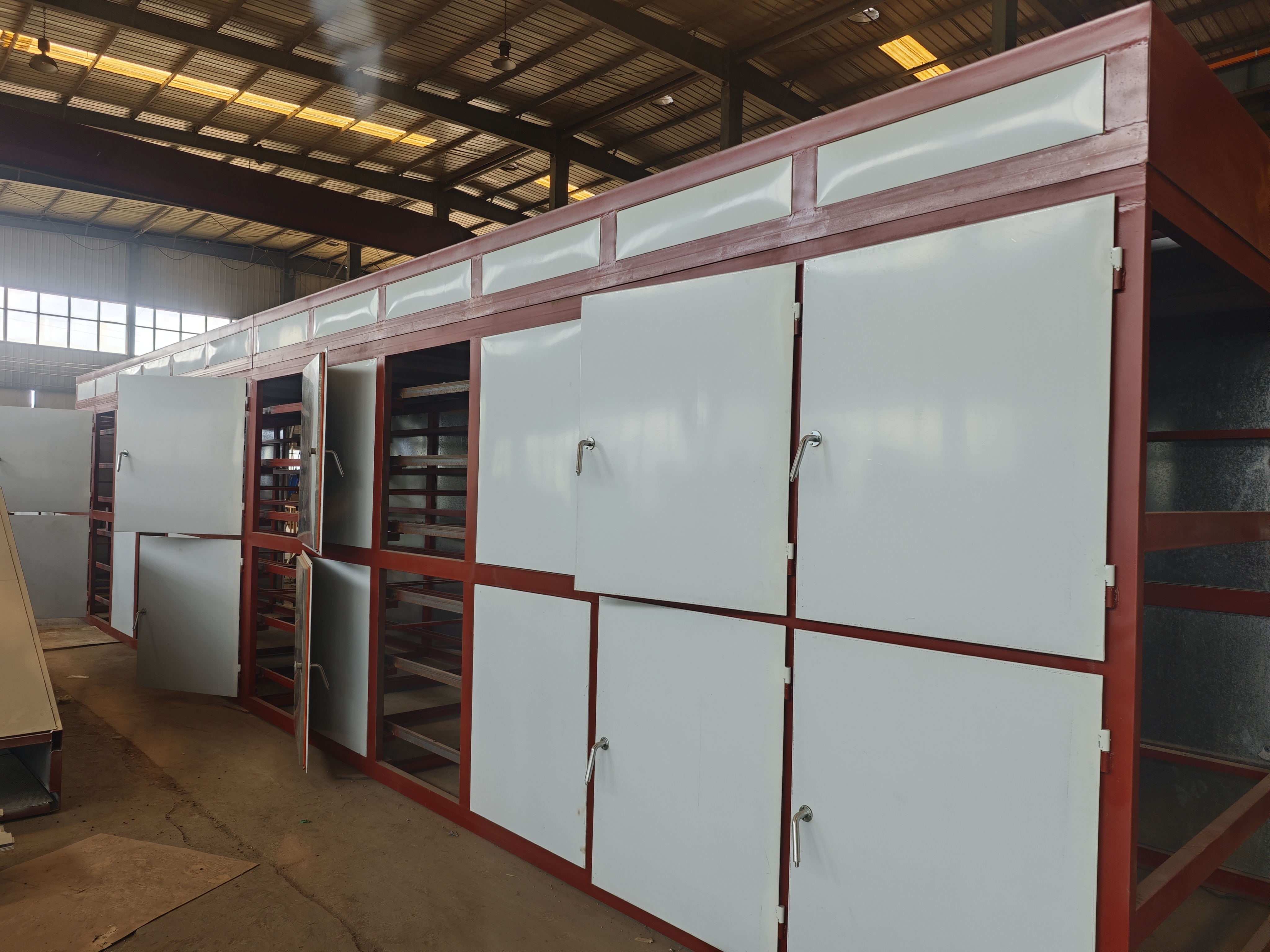

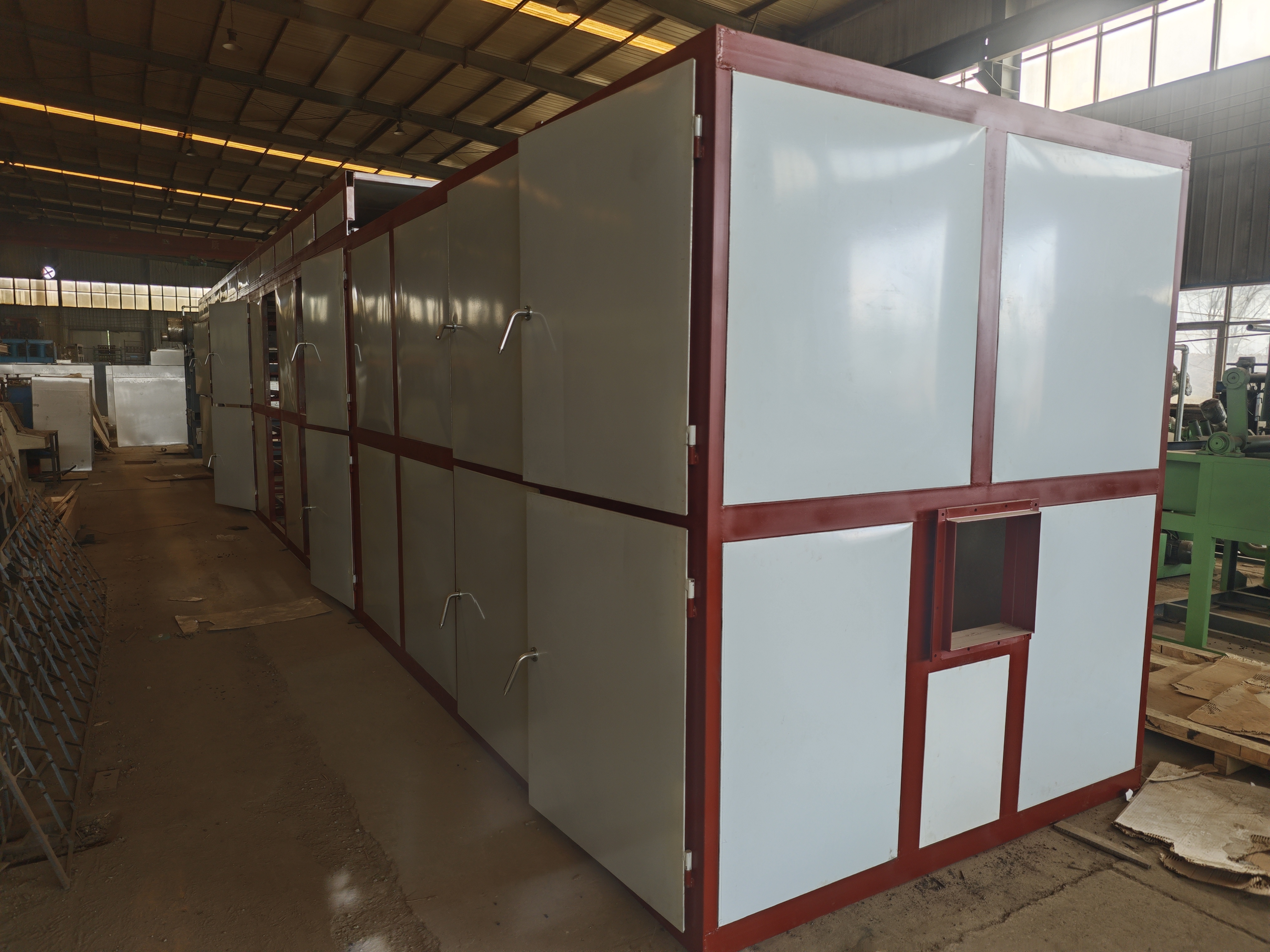

Dryer part of paper egg tray machine/egg tray production line of 2500-3000pcs/h capacity 4*4 molds forming
| Business terms |
| Machine Model | QTY | Unit price | EXW Jinan |
| WY-4*4 without dryer | 1 | |
|
|
| Delivery time | About 40 working days after receiving the deposit. |
|
| Payment term | BY T/T first advance40%, balance 60% be paid before machine delivery |
|
| Warranty time | 1 year after the Egg tray machine received. |
|
| Container quantity | 1*20GP container |
|
| Installation |
| 1. Usually, all installation and debugging work will be done before shipment. 2. We will offer online support after sales services for problems during installation and testing. 3. Buyer needs to build underground type 2 water pools with size of 2.5m*2.5m*1.5m (L*W*Depth)and 2 pulp pools with size of 2.5m*2.5m*1.5m(L*W*Depth). |
